Tube type Oil Skimmer
Manufacturing and Supplier of Tube type Oil Skimmers, Tube Oil Skimmer, Tube Oil Skimmers, from Shivane, Pune, Maharashtra, India.
Tube type Oil Skimmer

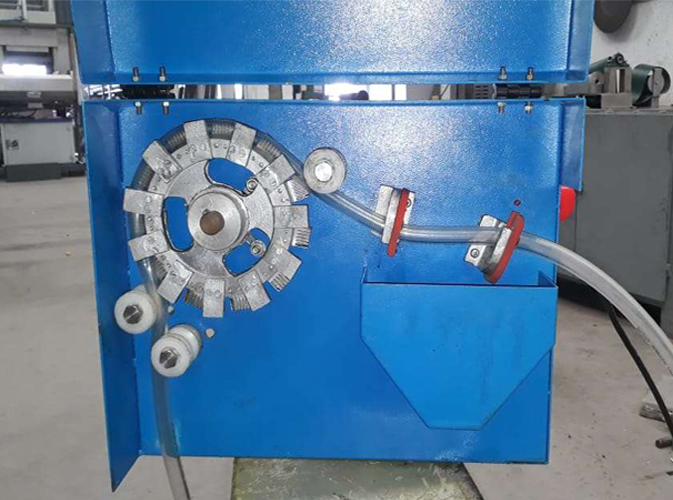

Tube-type oil skimmer unit shall be used and designed for the removal of free-floating oils from the surface of water in a sump. The basic advantage in using Tube type oil skimmer is that the tube floats on the water and thus more free-floating oil sticks to the tube and thus it is more efficient. Tube type Oil Skimmer Mechanism with Cantilever Swivel Arm Mast System mounting arrangement to collect Oil directly.
Key Features :
- Efficient and Effective Waste Oil Recovery.
- Remove Fat, Oil, & Grease from Wastewater.
- High quality equipment.
- Long functional life.
- Up-to 60 LPH oil removal capacity.
Applications :
- ETP Plant.
- CNC, VMC Machines.
- Waste Water Plant.
- Automobile Industry.
Specifications :
| Type | Tube type Oil Skimmer with endless tube |
| Capacity | 50-80 LPH Depending upon the thickness / viscosity of the free-floating oil |
| Temperature | 40 - 60 Deg.C |
| Tube Length (Mtr.) | Depends on tank depth or Client requirement |
| Frame MOC | SS304 / MS Powder coated |
| Drive wheel MOC | Aluminum |
| Scrapper | Silicon |
| Tube | Special PU (Polyurethene) with dia. 18 mm & thickness of 3 mm |
| Accessories | Outlet Hose (3 mtr. Long) For Oil transfer to collecting drum. Drum shall be in Client scope. |
| Electric Drive | 0.18 kwatt, 0.37 kwatt (415 VAC, 3 Phase, 50 Hz) with suitable worm reduction gear box. |
| Mounting | Floor / Cantilever Pole. |
