Belt type Oil Skimmer
Manufacturing and Supplier of Belt type Oil Skimmer, Belt type Oil Skimmers, Single Belt type Oil Skimmer, Double Belt type Oil Skimmer,
Multi Belt type Oil Skimmer, from Shivane, Pune, Maharashtra, India.
Belt type Oil Skimmer
Belt type Oil Skimmer is Quality construction finish and find suitability for achieving effective removal of non-emulsified Oil. We can make these available to oil remove capacities of 5 l/hr. to 80 l/hr. These oil skimmers provide support for continual cleaning operation as well as come in auto belt tensioning configuration for superior performance. Some of its features include allows for easy of maintenance, compact finish, ideally suited for individual machines and large tanks, application suitability in ETP, CNC - VMC Machines, Washing Machine, Hotels etc.
Features :
- Used for to remove Non-emulsified Oil floating on surface.
- Oil removing capacity : 1 L/Hr. to 60 L/Hr. (Will make customized also).
- Continuous Oil removing operation. Belt tensioning arrangement. (If require).
- Easy to maintenance and Single drive as well as very compact in size.
Applications :
- ETP Plant.
- CNC, VMC Machines.
- Waste Water Plant.
- Hotels for removing fat.
- Automobile Industry.

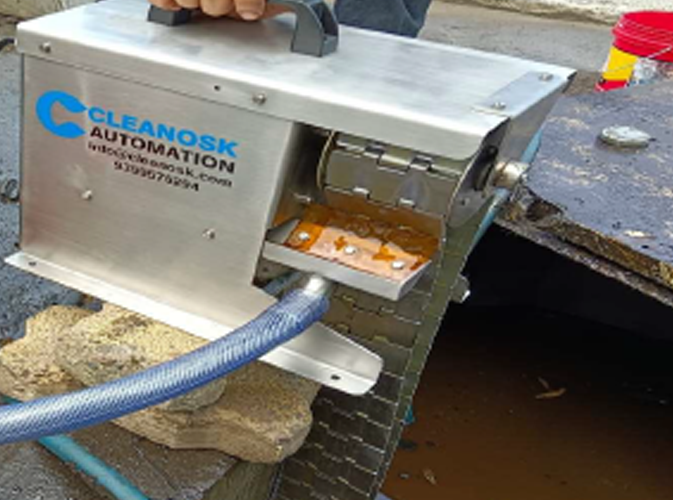

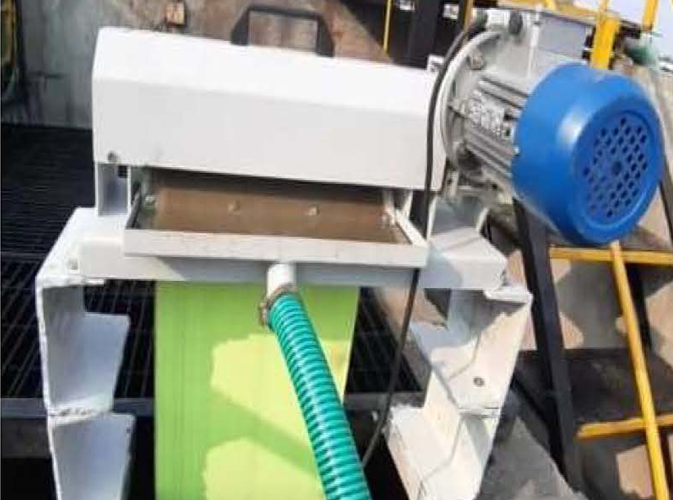

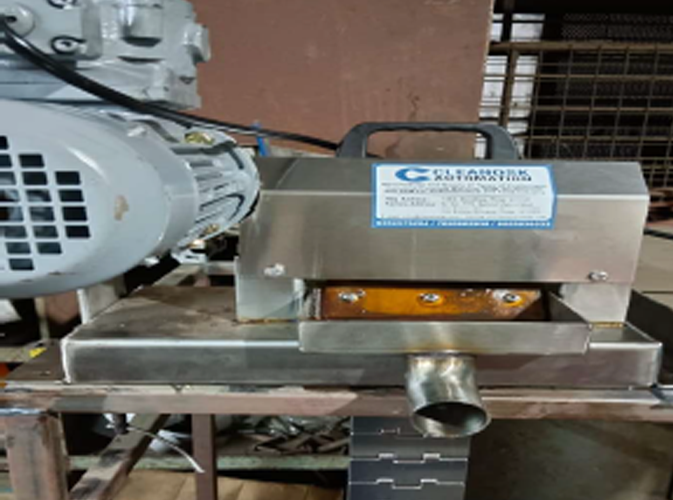

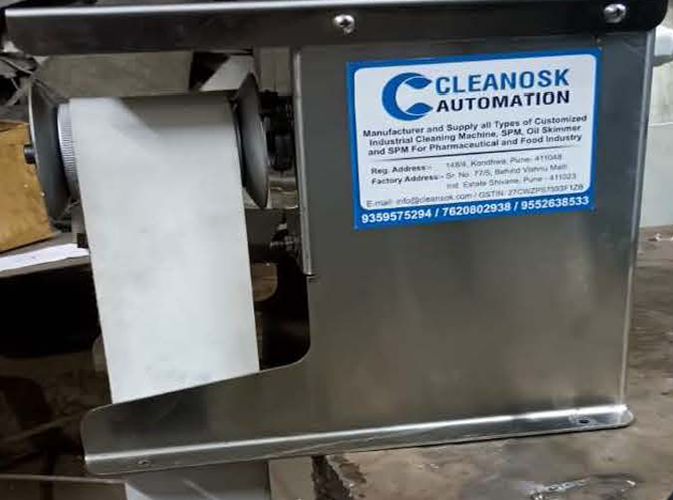

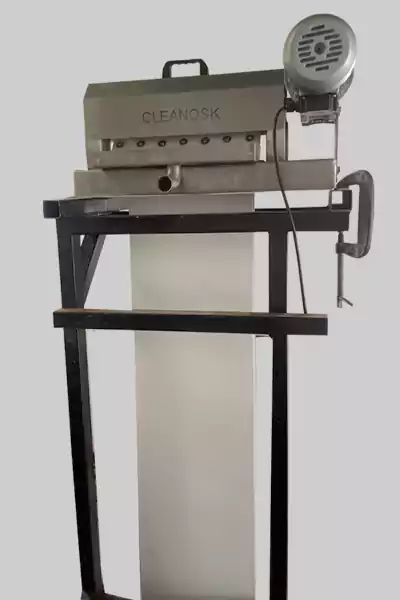

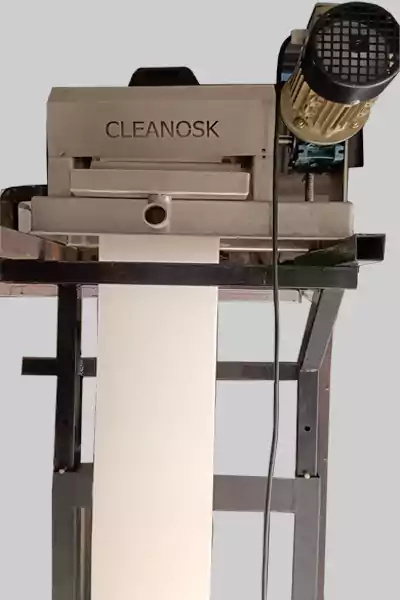

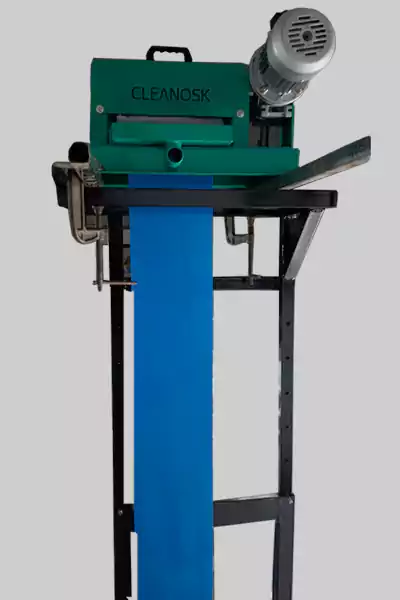

Single Belt type Oil Skimmer

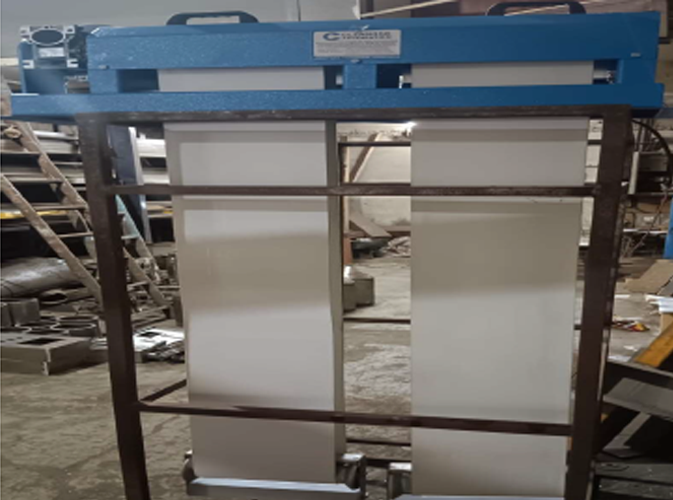

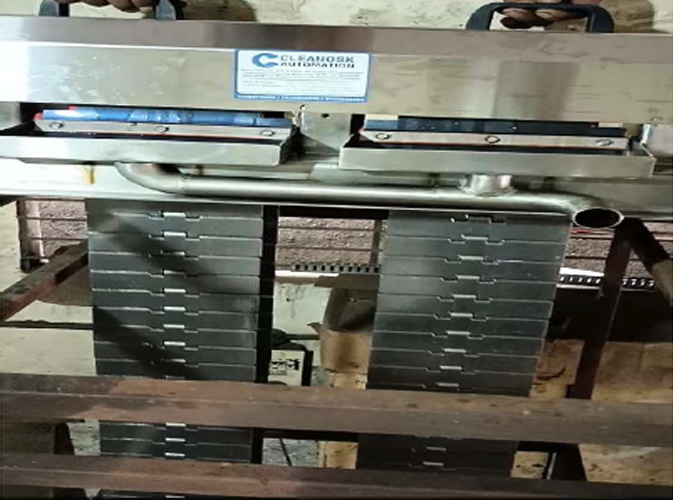

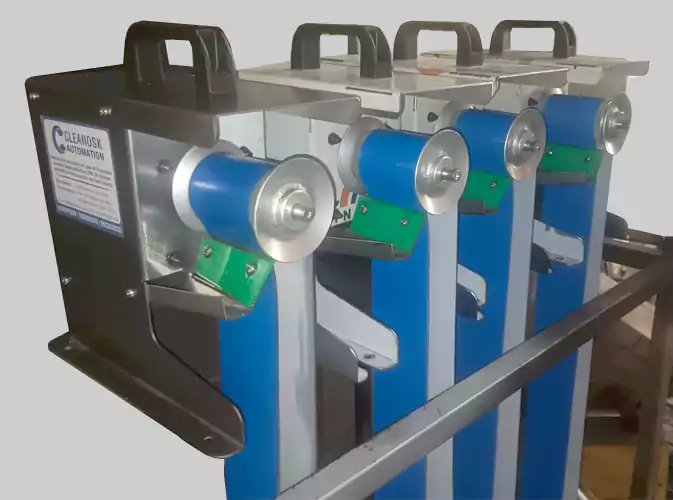

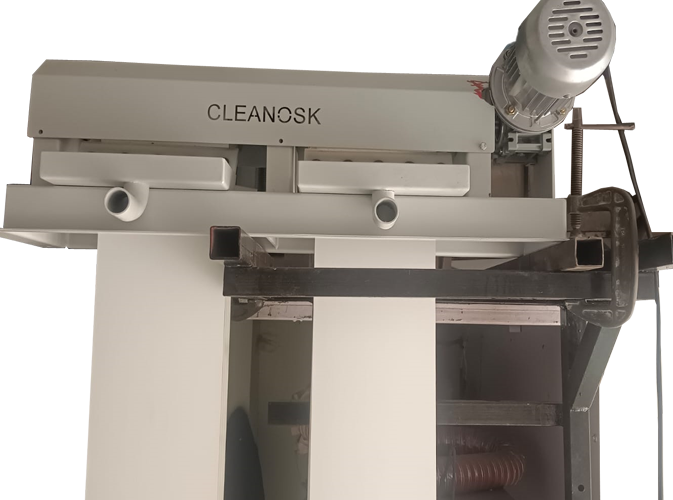

Double / Multi Belt type Oil Skimmer
Specifications :
| Type | Belt type Oil Skimmer |
| Capacity | 0-60 LPH Depending upon the thickness / viscosity of the oil and Belt width |
| Temperature | 40 - 60 Deg.C |
| Belt Length (Mtr.) | Depends on tank depth or Client requirement |
| Frame MOC | SS304 / MS Powder coated |
| Drive wheel MOC | Aluminum / MS |
| Driven wheel | MS / SS304 |
| Dead weight | MS / SS304 |
| Scrapper | PP / Silicon |
| Belt (Imported) | PU (Polyurethene) Width of 65 to 300 mm |
| Accessories | Outlet Hose (2 mtr. Long) For Oil transfer to collecting drum. Drum shall be in Client scope. |
| Electric Drive | 25 watt, 0.18 kwatt, 0.37 kwatt (230 / 415 VAC, 1/3 Phase, 50 Hz) with suitable worm reduction gear box. |

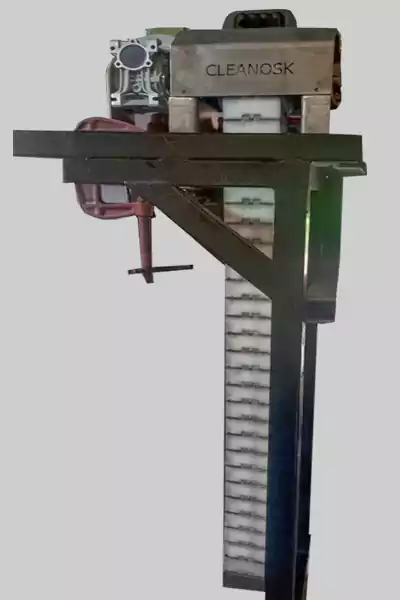

| Mounting | Floor / Cantilever Pole. |
| Sr. No. | BELT WIDTH | OIL REMOVING CAPACITY (Depend on Viscosity) |
| 1 | Belt 65 mm | 0 - 5/10 LPH |
| 2 | Belt 100 mm | 0 - 10/20 LPH |
| 3 | Belt 150 mm | 0 - 20/30 LPH |
| 4 | Belt 200 mm | 0 - 30/40 LPH |
| 5 | Belt 250 mm | 0 - 40/50 LPH |
| 6 | Belt 300 mm | 0 - 50/60 LPH |
